Using Ranges

EO.Wpf Slider can display a list of background ranges. The following XAML demonstrates this feature:

XAML
<Window x:Class="Test.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:eo="http://schemas.essentialobjects.com/wpf/"
        xmlns:g="clr-namespace:System.Globalization;assembly=mscorlib"
        Title="MainWindow" Height="250" Width="350">
    <StackPanel Margin="10">
        <eo:Slider Minimum="0" Maximum="100"
            TickPlacement="Both" TickFrequency="10">
            <eo:Slider.Ranges>
                <eo:Range StartValue="0" EndValue="40" Fill="Green"></eo:Range>
                <eo:Range StartValue="40" EndValue="70" Fill="Yellow"></eo:Range>
                <eo:Range StartValue="70" EndValue="100" Fill="Red"></eo:Range>
            </eo:Slider.Ranges>
        </eo:Slider>
    </StackPanel>
</Window>

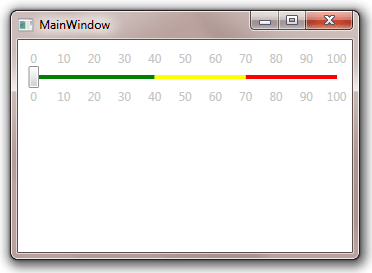

The above code produces the following result:
